BluePrint Adjustable Scope Mounts

For more help with your order email office@brocock.co.uk

BluePrint Adjustable Scope Mounts offer variable height and tilt adjustment
BluePrint Adjustable Scope Mounts offer variable height and tilt adjustment
BluePrint Adjustable Scope Mounts offer variable height and tilt adjustment
A Black set of BluePrint Adjustable Two-Piece Scope Mounts with 30mm rings and 11mm Dovetail clamps

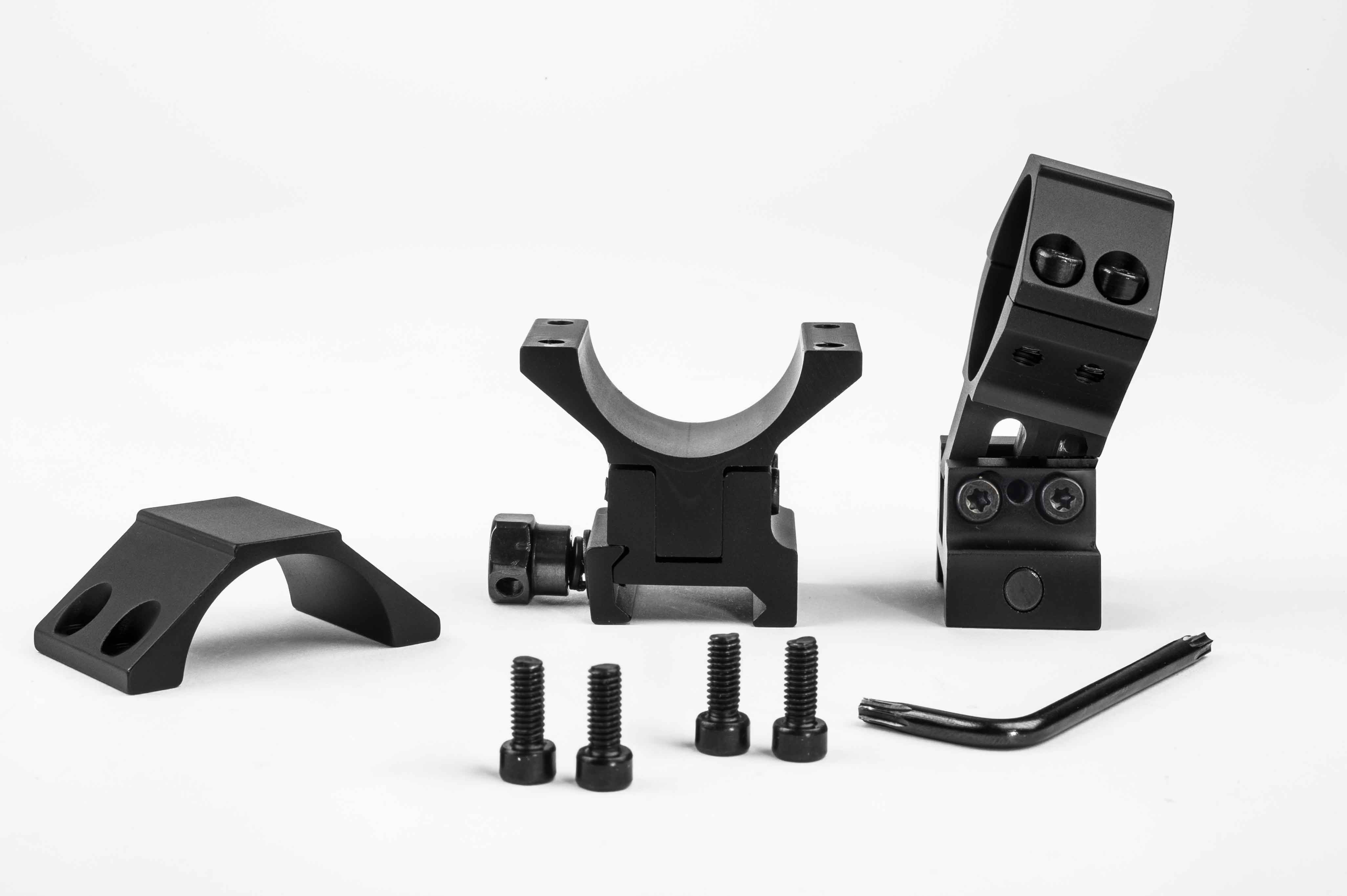

A Black set of BluePrint Adjustable Two-Piece Scope Mounts with 30mm rings and Picatinny clamps
£62.50

BluePrint Adjustable Mounts fit 30mm tube scopes and are especially useful for tricky scope-mounting situations.

They provide a 7mm height adjustment range (15-22mm between scope and receiver). This helps clearance between the receiver and scope objective and/or saddle.

Also, because they're 'tiltable', you can also allow for 'droop' barrels without having to shim the mount. This saves putting stress on the scope tube.

Available with 11mm dovetail or Picatinny (22mm/Weaver) clamp. 30mm rings only.

Choose your exact configuration below.
Clear

SKU: N/A Category: Tags: , , ,

BluePrint Adjustable Scope Mounts

30mm rings, with 11mm Dovetail or Picatinny clamp

BluePrint Adjustable Scope Mounts are made to the same exacting specifications as the Standard Two-Piece Mounts. However, these have the added feature of height and tilt angle adjustment. So they are particularly useful for scopes with large objective bells. They also suit long-range rifles, which require the scope to be tilted in line with the bore.

Compatibility

These adjustable mounts designed to fit scopes with 30mm body tubes. They will not fit scopes with a 25mm (1″) tube. There are two models in the range – one to to fit 11mm (3/8″) ‘airgun’ dovetails and one to fit Picatinny / Weaver receivers. BluePrint Adjustable Scope Mounts are rated for recoilless airguns, recoiling airguns and rimfire firearms.

Design

Exclusively made for BluePrint, MTC Optics recommend BluePrint Mounts for the MTC range of sights. They are manufactured on precision CNS machinery to exacting engineering standards. We use only the correct materials – aircraft quality alloy. This ensures your scope aligns correctly and doesn’t move under recoil (or temperature changes).
Their hard anodised matt black finish is anti-reflective and each ring features a triple bolt system on each side of the cradles. This helps evenly spread the load across the scope tube, avoiding stress.
The clamps of the 11mm Airgun Dovetail set use twin-bolt, cap-head screws. These sit flush in the clamping base and provide a much neater looking mount assembly. In addition, the cradles of this model feature triple screws.
The height and tilt adjustment bolts (x2) are flush on both clamp variations.

Adjustment system

The cradles of these ring mounts are adjustable for height. The adjustment range is 7mm. This provides a clearance of 15-22mm between scope tube and receiver. In addition, the tilt angle between the front and rear cradle is adjustable. This lets you to optically centre the scope – a major benefit. An optically centred scope means you don’t have to dial the scope’s adjustment turrets by much to achieve the perfect zero. Such a feature is also handy for long-range shooting and saves ‘shimming’ the rear cradle. Additionally, the linear design of the BluePrint’s adjustment system will stop any undue stress to the scope body.

Important

Fitting a scope to a rifle may seem simple but, in fact, it has an extremely important bearing on your shooting accuracy. Ill-fitting, flimsy and misaligned mounts will contribute to poor accuracy, not matter how good the shooter and the ammunition. Therefore, never be tempted to fit your scope with cheap, inferior mounts. The build standard of BluePrint Mounts ensures optimal scope-to-rifle marriage. So, when you invest in a set of BluePrint mounts, you can be sure of the following:

  • A BluePrint mount will be engineered correctly to avoid stress on the scope’s body tube
  • A BluePrint mount will correctly align your optic to the rifle’s bore
  • A BluePrint mount will stay put on your rifle’s receiver and not creep under recoil

Special Models

BluePrint also offer other mounts designed for special applications:

For all other applications, choose BluePrint Standard Two-Piece Mounts, which are available in a wide range of configurations.
